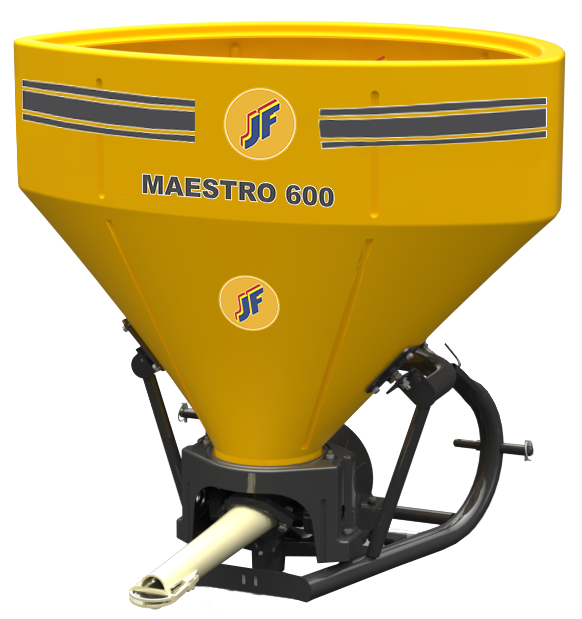

JF MAESTRO 600 Fertilizer Distributor, Limestone and Sowing Machine

SPECIFICATIONS

Capacity¹ 50 to 2000 Kg/ha
Height 1330 mm
Length 1700 mm
Load capacity 600 liters
Power to drive the PTO from 50 hp
PTO rotate 540 rpm
Weight 139 Kg
Width 1500 mm
Working width 9 to 14 meters
¹The productivities are average evaluations obtained during test conditions and may vary according to the product humidity degree, specific weight, equipment adjustment and working conditions.

JF Maestro 600 is a pendulum spreader specially designed for the uniform distribution of granular fertilizers and seeds. It’s also possible to be used on dry limestone broadcast.

One of the highlights is the possibility of using it to accurately distributing fertilizers in orchards and forestry plots, spreading the material directly into the plant, avoiding waste.

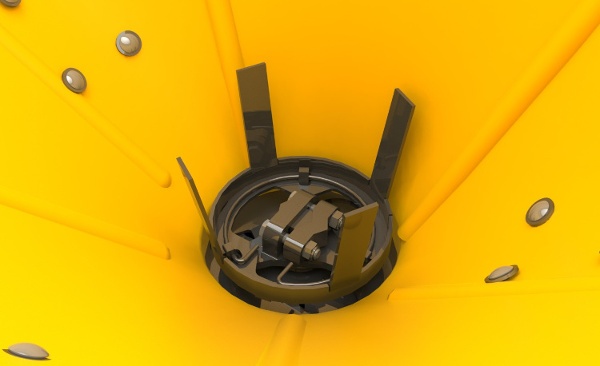

JF Maestro 600 shaking and pendulum system has an oscillating motion which allows the continuous material flow into the pendulum, preserving the fertilizer shape and avoiding demage to the seeds. JF Maestro 600 also has an extra shaker for different products which makes it much more versatile.

Characteristics



Pendulum spreader for fertilizer and seed with 600 liters capacity, powered by tractor PTO, frame built in steel, hopper made of polyethylene, featuring an independent pendulum unit, pendulum made in nylon fiber, distribution range from 9 to 14 meters, shakers with oscillating motion system, shaker with cone built in nylon fiber, extra shaker for diferent products, adjustable dosage by material releasing control, driven by PTO shaft, dosing bar, dosage bar lever, 50 hp required power at PTO, required revolution at PTO of 540 RPM.

Benefits

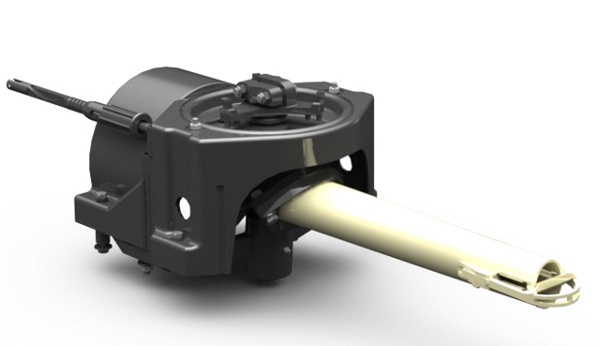

• Independent pendulum unit with easy maintenance and calibration which maintains performance even on sloping fields;


• Hopper with 600 liters capacity is built in virgin polyethylene free of oxidation and easy maintenance and cleaning of distribution mechanism;


• Pendulum and distribution cone which are in contact with fertilizers are made of  nylon fiber for avoiding oxidation;


• Shaker system with oscillating motion and extra shaker device for diferente products;


• Adjustable material releasing avoids lacking or remaining of material at the end of operation.
