Characteristics

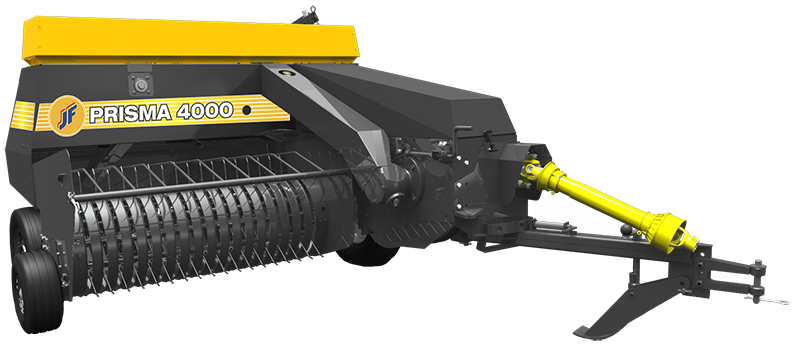

Balers JF Prisma 4000/5000 for picking up, pressing, tying and counting bales for several forage crops, powered by tractor PTO, featuring triple overload protection system (Prisma 5000); double overload protection system (Prisma 4000), pick-up with support wheel for absorpting impacts, hydraulic cylinder for adjusting the height of pick-up, two automatic knotters operating with sisal or synthetic twines, bale tying in the end of operation, twine ball container, 1,73m Pick-Up (Prisma 5000), 1,50m Pick-Up (Prisma 4000), driven by strong cardan shaft, pick-up, press and knotting systems driven by gear transmission and torsion shafts whithout chain or belt (Prisma 5000), high speed compression plunger (100 strokes/min) on sealed beared, plunger running on trails, German knotting system Rasspe, bale tying with sisal, synthetic twines, self-deflecting feeding forks, device with 4 springs to avoid bale return, cardan with slipping clutch, knotter frame with brake, bale lifting tray to discharge directly on trucks and trailers (optional). For capacity, required revolution and recommended power at PTO, please check technical features section of the brochure.

Benefits

• Prisma 5000: 1,73m pick-up driven by a strong cardan shaft with high capacity for receiving forage mass, including maize straw. It allows to process big windrows save work time and fuel. This more uniform flow of forage mass results also in bales with more accurate density and tying.

• Prisma 5000: Perfect synchronism with transmission made by gears and torsion shafts, without chains and without belts. It drives the pick-up, packing and knotting systems in perfect synchronism. The lowest maintenance in its class and it allows to take full advantage of tractor power.

• Prisma 4000/5000: High speed compression plunger (100 strokess/minute) slides smoothly on sealed bearings consuming less power due to less friction between plunger and the trails. This results in higher speed of bale compression and machine displacement. It's more productivity, less hours worked and lower fuel consumption.

• Prisma 4000/5000: Reliable German technology Rasspe knotter: Simple and of easy operation, the Rasspe knotter assures precision in tying the bales with natural (sisal) and synthetic twines. The perfect tying is essential for a handling without loss, easy storage and protection of forage quality.

• Prisma 4000/5000: Self deflecting feeder fork that when overloaded the it deflects automatically and keeps the system in constant functioning, balanced and synchronized with the pick-up and compression plunger. This delivers a perfect feeding flow without unnecessary stops and makes JF Prisma the most productive in its class.
