JF 1650 T Mower

SPECIFICATIONS

3-point linkage Hydraulic Category I & II
Cutting width 1650 mm
Number of blades 6
Number of discs -
Number of drums 2
Recommended revolution at PTO 540 RPM
Tractor power (hp) 35 hp
Weight 380 kg
Working capacity up to 2 ha/h
¹The productivities are average evaluations obtained during test conditions and may vary according to the product humidity degree, specific weight and working conditions.

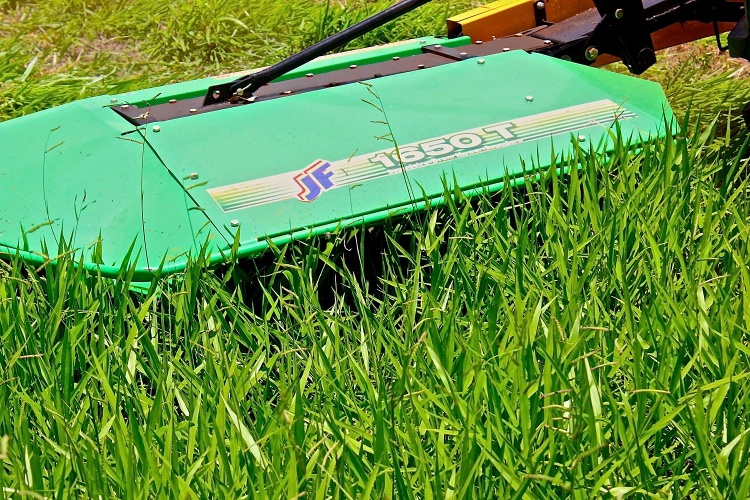

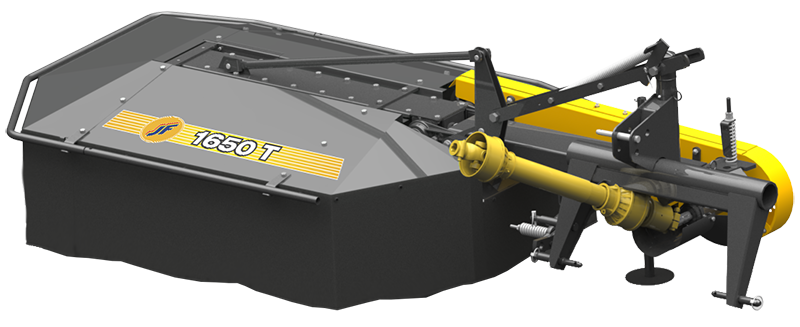

JF 1650T Drum Mower was developed for meeting the needs and different work conditions of farmers that produce hay bales for livestock feeding. It has transmission by belt and conical gears as well as a safety system that avoids damage to the equipment when facing any kind of obstacle.

Its precise and smooth mowing system results in high output and faster growth of fodder, without damaging the quality and productivity of the forage along the years.

The double life blades provides higher durability and the self-cleaning cutting system allows the mower to work on laid down and wet forage, keeping the drums rotation free. Another important feature is the safety device automatically activated whenever an obstacle is hit.


JF 1650T Drum Mower was designed to have a simple and low maintenance .

Characteristics



Drum Mower JF 1650 T for forage cutting in order to produce hay or haylage silage, like alfafa, oat, ryegrass, clover, rhodes and other grasses, 1650mm cutting width, powered by tractor PTO, featuring hidraulic 3-point linkage, 6 blades with double cutting edges, 2 drums, hidraulic arm, cardan, drums driven by gears, belt adjustment device, self-cleaning cutting system, automatic device for protection against obstacles and impacts, compensating springs with up to 30% reduction of side weight, flexible protective canvas over the cutting area, head for changing from transport to working position, tool for blades change, transmission by cardan with free wheel, required revolution at PTO of 540 RPM, minimum required power at PTO of 35 hp.

Benefits



• Driven by cardan with free wheel;


• Blades with double cutting edges increase durability;


• Automatic safety device with impact protection;


• Self-cleanning disc system to work on laid down and wet forages;


• Compensating springs reduces the equipment side weight up to 30%, minimizing disc wear, avoiding damage to forage and less tractor power consumption;


• Flexible protection canvas over the cutting area guarantee greater safety for operator;


• Working and transport position changing through easy and simple head unlocking;


• Easy and simple change of cutting blades (tool included).
