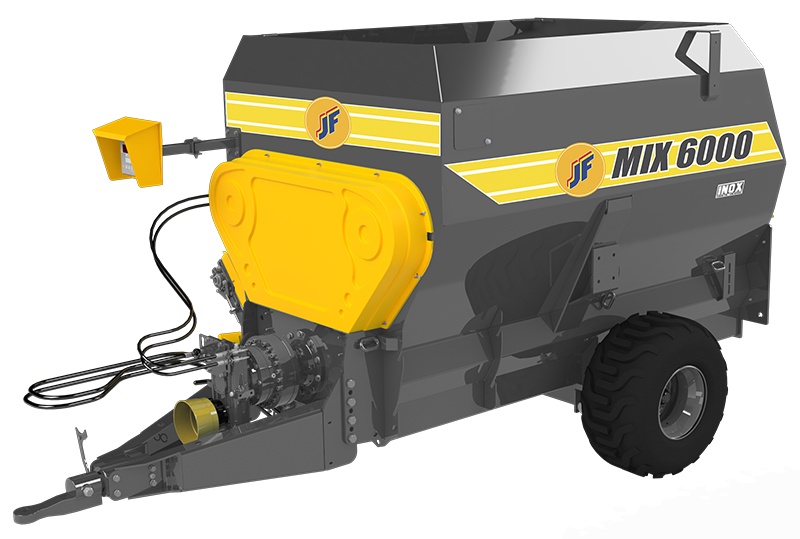

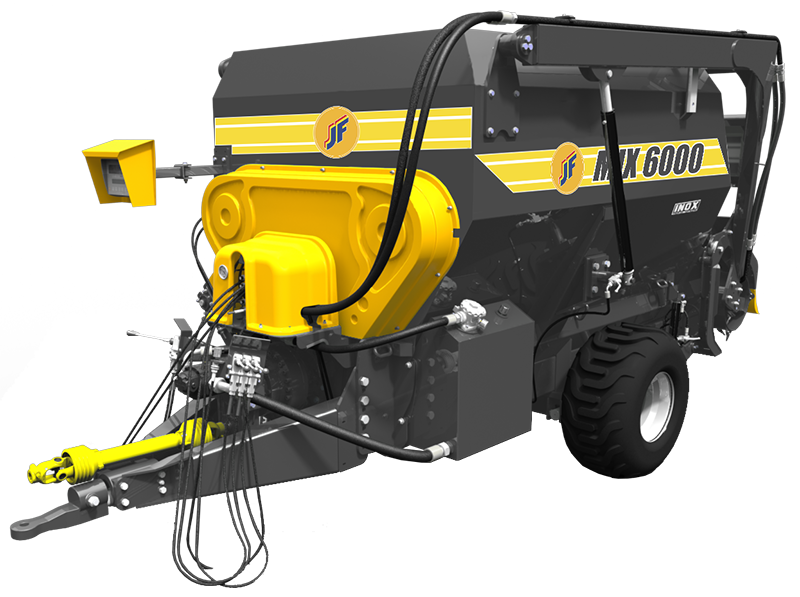

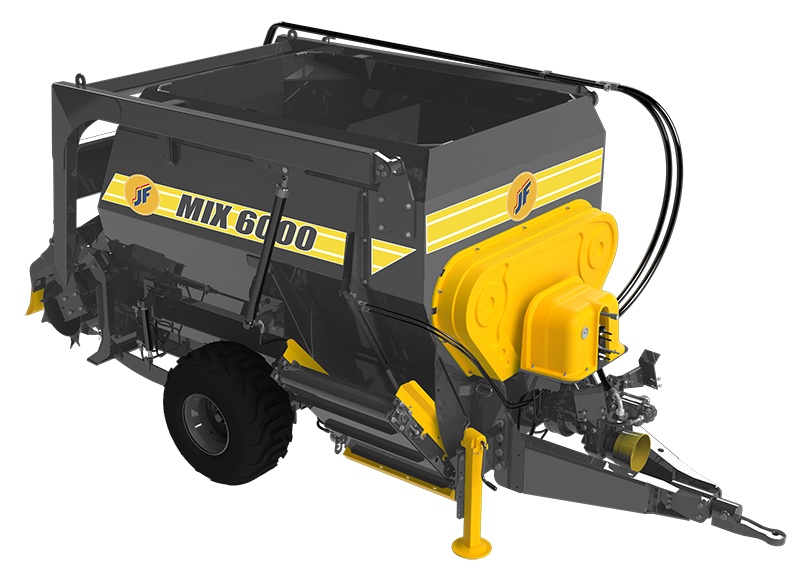

JF MIX 6000 Mixer
SPECIFICATIONS
| Capacity¹ | 6m³ |
| Discharge side | right |
| Height with silage loader (on high) | 3800 mm |
| Height without silage loader | 2370 mm |
| Length with silage loader | 5450 mm |
| Length without silage loader | 4480 mm |
| Power source | tractor PTO |
| Required power at PTO | 50 to 60 cv |
| Required revolution at PTO | 540 RPM |
| Stainless steel | Mixing tank |
| Tires | (400/60 - R15,5) (HF75) (T404) |
| Weight with silage loader (empty) | 3750 kg |
| Weight without silage loader (empty) | 2850 kg |
| Width with silage loader (empty) | 2157mm |
| Width without silage loader (empty) | 2142mm |
| ¹Capacity can vary depending on the product’s density. | |
JF Mix 4000/6000/8000 TMR Feed Mixer line has been developed to meet the needs of dairy and beef cattle farmers. Equipped with silage loader and with digital weighing system using DG500 scale, it features 3 precision load sensors and allows downloading data to computers through an USB memory, having several diets and recipes options.
The planetary transmission system is designed to support hard work and the mixing tank is built with 5mm stainless steel sheet, making the mixer more resistant to everyday work. The mixing system has a powerful central auger with knives and counter knives that cuts hay and two upper augers to guarantee an homogeneous mixing.
The draw bar is adjustable to the tractor height and the discharge gate is managed through hydraulic control. The control of discharge belt height is manual or optionally it can be changed to hydraulic control in order to guarantee a perfect discharge. JF TMR Feed Mixers are available with capacity of 4m³, 6m³ and 8m³ , with or without silage loader, supporting several herd sizes.
Characteristics
Mixer powered by tractor, with capacity of 4m³, 6m³, and 8m³, equipped with main tank built in 5mm stainless steel sheet, mixing auger with knives, mixing tank with counter knife, silage loader with cutting drum with cross knives system independent and replaceable, oil tank, resistant planetary gearbox for cutting and mixing hay, haylage, silage and other materials for animal feed, back protection for cutting drum, PTO shaft protection, weighing system with data downloading to USB memory/computer and discharge conveyor directly in the trough. Transmission by PTO shaft through reduction gearbox, auto silage loader controlled by hydraulic pump and articulation by hydraulic cylinder, flotation tyres, upper augers driven by chains, required revolution at PTO of 540 RPM and required power at PTO of 50 hp.
Benefits
• Mixing tank built with 5mm stainless steel sheet;
• Mixing auger makes easier cutting of long fiber and homogenous mixture;
• Independent and removable cross knives system remove the silage without damaging the silage wall structure, avoiding entrance of oxygen and preserving the nutrients;
• Oil tank with coupling for quick access and easy maintenance;
• Robust planetary gearbox, with resistant transmission which allows cutting and mixing hay, silage, etc.;
• Scale with loading and unloading functions and information can be downloaded to computers by an USB memory for more recipe options;
• Reduces the risk of metabolic diseases such as acidosis, indigestion, etc;
• Good to use for feeding different lots of cattle;
• Uniform discharge into the trough;
• Requires less labor than traditional system;
