JF 1000 AT S3 Head
SPECIFICATIONS
| Attachable | all models JF 92 and C120 |
| Capacity¹ | up to 35 ton/h |
| Culture | millet, maize, sorghum, sugar cane, oats, etc |
| Power source | tractor PTO |
| Required power at PTO | 60 to 80 hp |
| Required revolution at PTO | 540 RPM |
| Working width | 1 meter |
| ¹Maximum working width can be significantly reduced due to: product type, ways of planting (planted in row or broadcast), distance between rows, topography and climate among other factors that affects harvesting. ²Productivity might vary and depends on the following factors: cut size; productivity of forage per hectare; tractor power; logistic capacity (wagons) for forage transportation. Acquiring a head, please talk to your dealer about the size of your tractor tire. Heads are optional and sold separately. | |

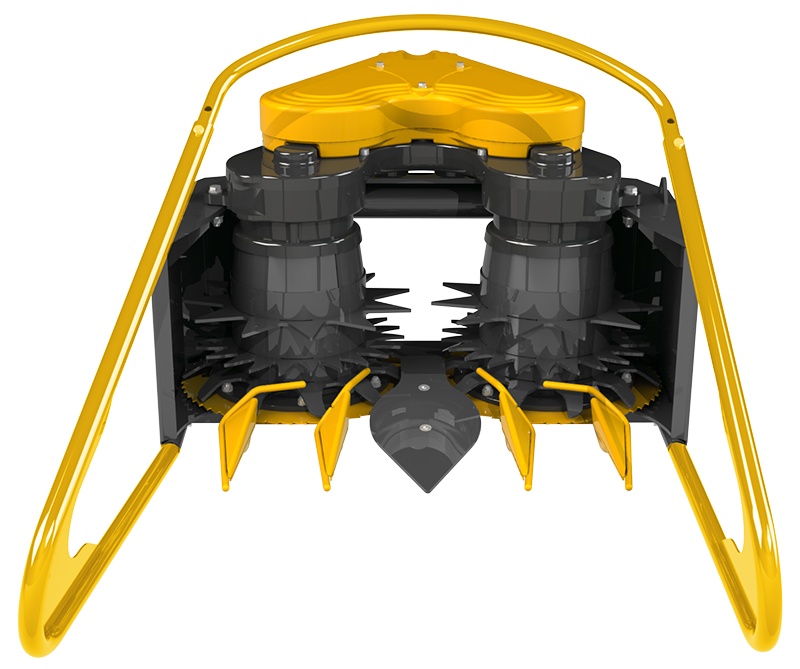

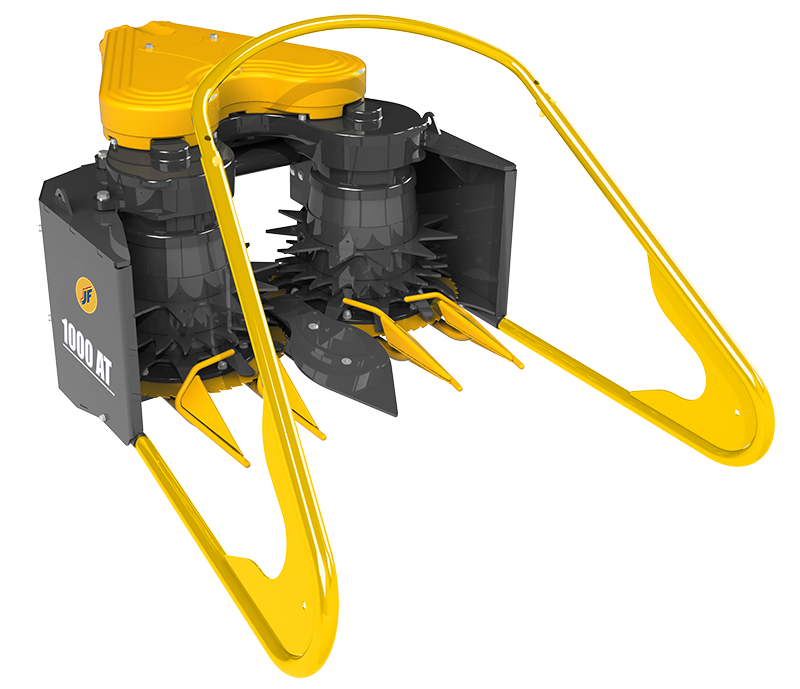

The Multi-forage Head JF 1000 AT S3 hits the market to open a new world of possibilities to the farmer and making your JF precision havester more versatile, allowing and making easier the harvesting of all type of forage.
This equipment allows harvesting in any direction and independent of sowing line, including intercropped systems. Its dimension, design and final composition causes less compact to the soil, high productivity, lower tractor fuel consumption and the best market cost-benefit ratio.
The row independent head JF 1000 AT S3 is an optional for coupling to the precision forage harvesters models JF 92 and C120. JF 1000 AT is also sold already attached to the JF C120, and this combo is called JF C120 AT (with specific part numbers).
Benefits
• Harvesting of 2 rows³ of maize and sorghum;
• Wider “mouth” for easier harvesting of sugar cane and tropical grasses;
• Increase of productivity of harvester with low power requirement;
• Labor and fuel saving if compared to using 2 single row harvesters;
• Simple and strong transmission, built with resistant gearboxes for lower maintenance;
• Easy and quick coupling to all models JF 92 and C120;
• It has a maximum cutting width of 0,92m for harvesting forage planted in row, broadcast, intercropped systems and in any direction, increasing substantially the productivity.
