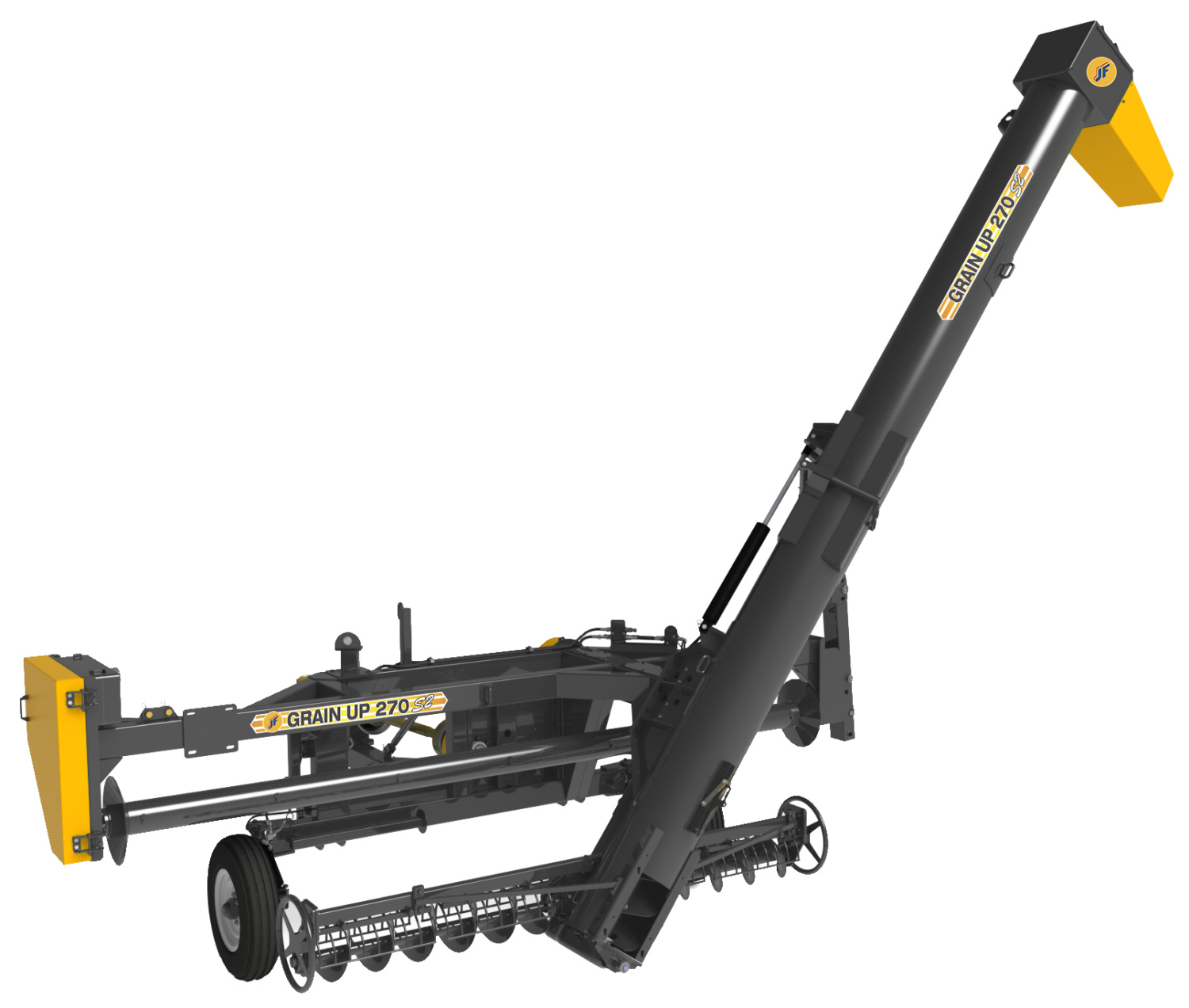

JF GRAIN UP 270 S2
SPECIFICATIONS
Bag specifications | 9 feet |
Driving of augers | Tractor PTO |
Driving of bag roller | Hydraulic Engine |
Height (working position) | 5350mm |
Height extended work/transport | 3300mm |
Length | 2500mm |
Length (working position) | 4200mm |
Required power at PTO | From 60 hp |
Required revolution at PTO | 540 RPM |
Tires | 7.5 x 16 (10 treads) |
Unloading heigh in working position | 4300mm |
Weight | 2462 Kg |
Width (working position) | 2900mm |
Width of the sweeper thread | 2900mm |
Working capacity | Up to 210 TON/H of continuous flow |
JF Grain Up Grain Extractor has a modern transmission system and an innovative cvstem or work and transportation. it features an incomparable mobility, high capacity and also a version with tray loading station included.
JF Grain Up was designed using high technology such as the auger that extracts quickly and efficiently grains stored in 9 feet bags and
transport with precision to trucks or arain oins without loses and without damaging the grains
The system allows the machine to extract the grains while it cuts and roll the bag in a synchronized movement with the loading
Another highlight of JF Grain Up is the tray system (optional) that can receive the grains from trucks or trailers and turn the JF Grain
Up into a loading station.
