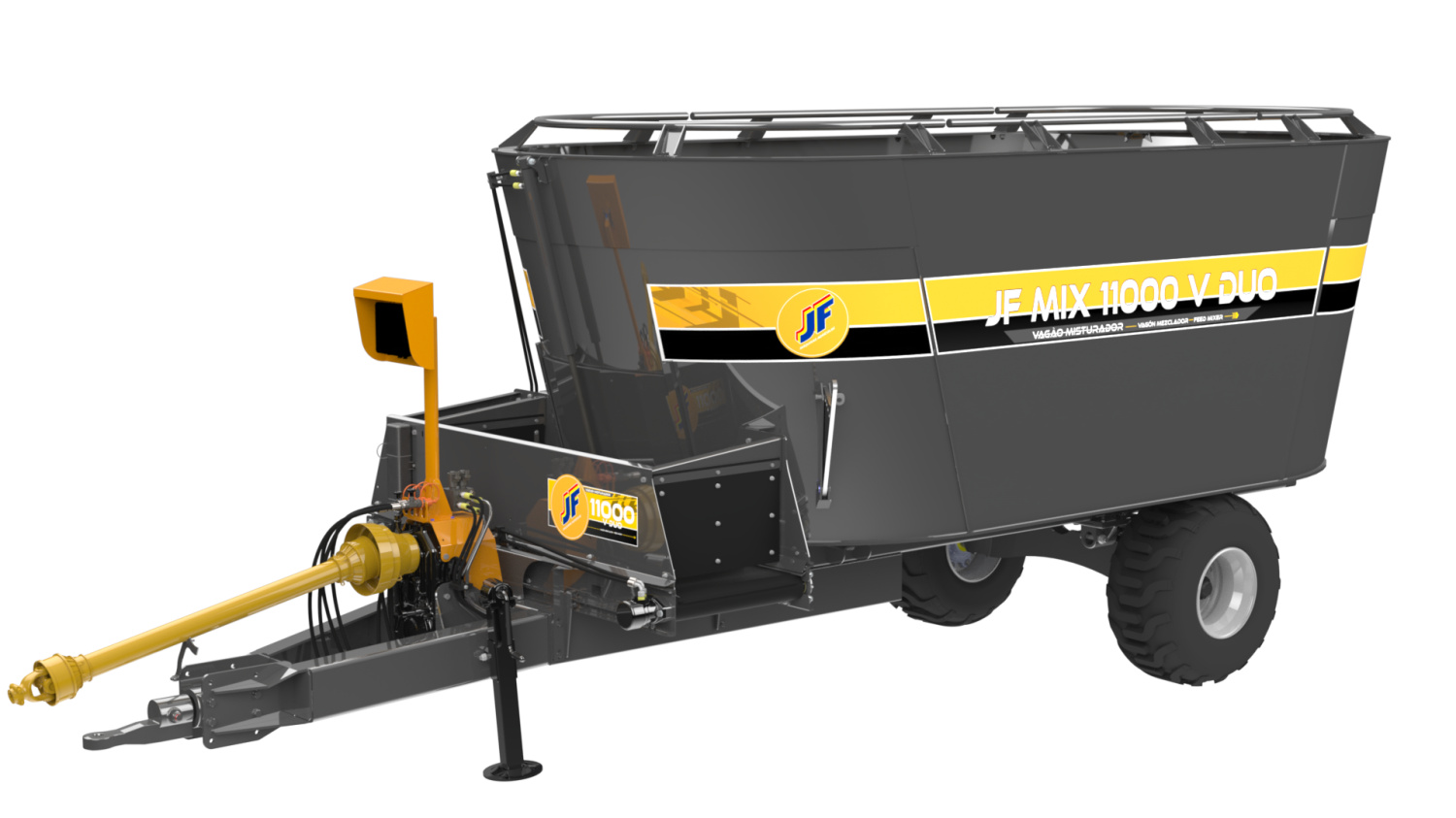

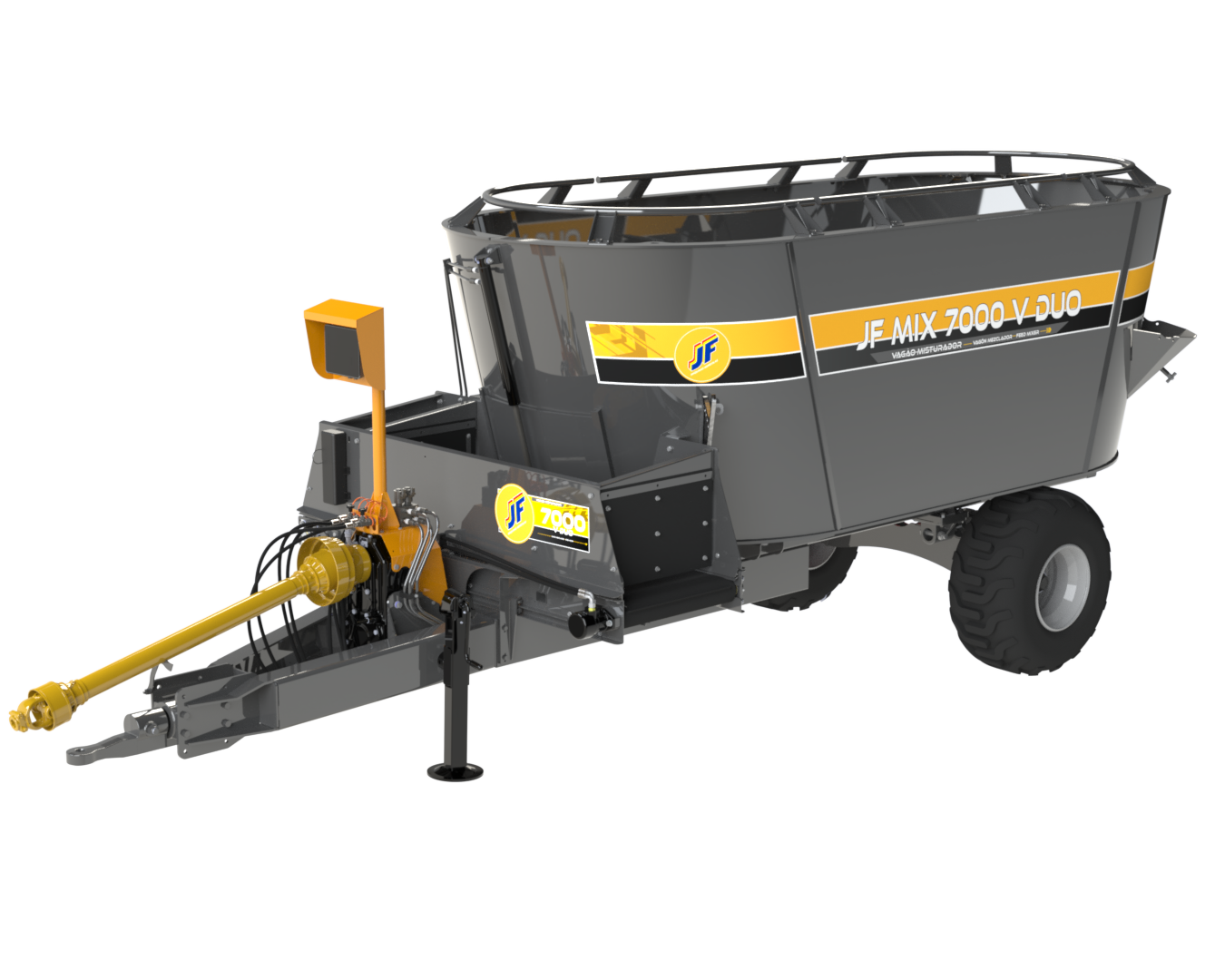

JF MIX V DUO 7000 / 11000 MIXER
SPECIFICATIONS
Capacity | 7m³ / 11m³ |
Counter blade settings | 12.7mm stainless steel |
Discharge height by belt | 715mm |
Discharge height by door | - |
Discharge side by belt | both sides |
Discharge side by door | - |
Height | 2265mm / 2513mm |
Length | 6027mm / 6600mm |
Mixing auger | - |
Mixing tank sheet | 5mm stainless steel |
Number of blades | 18 |
Number of counter blades | 2 |
Power source | tractor-mounted |
Required power at PTO | from 70hp / 80 hp |
Required revolution at PTO | 540 RPM |
Tires | 11L15 (12 CANVAS) HIGH-FLOTATION / 11L15 (12 canvas) HIGH-FLOTATION |
Weight with 1 discharge door (empty) | - |
Weight with 2 discharge doors (empty) | - |
Weight with discharge belt (empty) | 2502kg / 3206kg |
Width | 2050mm / 2120mm |
The main ingredient for a successful farming recipe!
JF’s DUO Vertical Mixers bring to the market the most significant innovation in recent years: A mixer featuring a double auger system that ensures a homogeneous mix with much more speed and efficiency to feed every animal from the first to the last with the same feeding quality.
Benefits
☑ DUO MOVmix® technology ensures efficient mixing with a low coefficient of variation throughout the entire tank, even near the walls;
☑ High-strength and durable planetary transmission with 2 mixing speeds;
☑ Blades and counter blades with multiple adjustment positions for better mix adaptation;
☑ High-flotation tires
